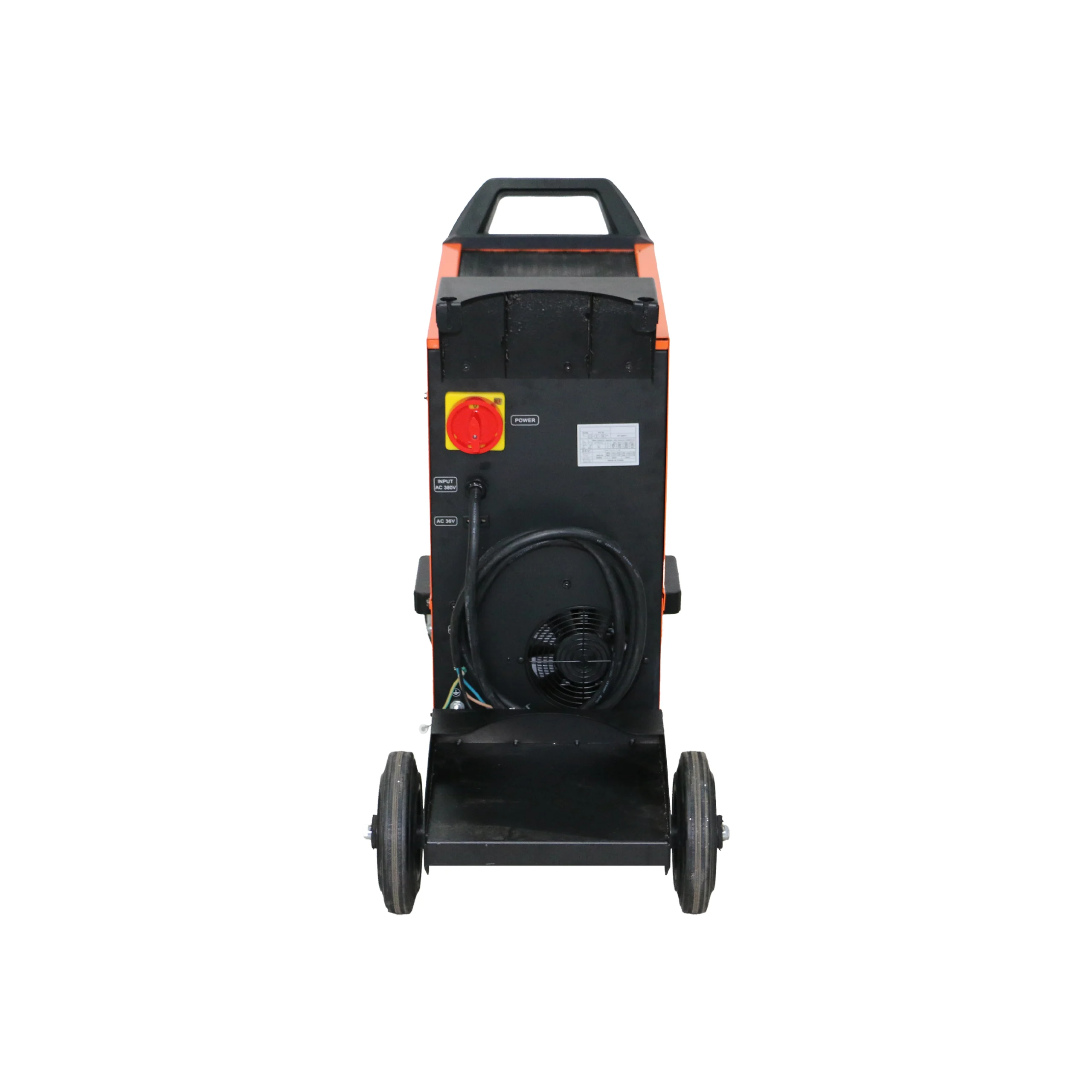

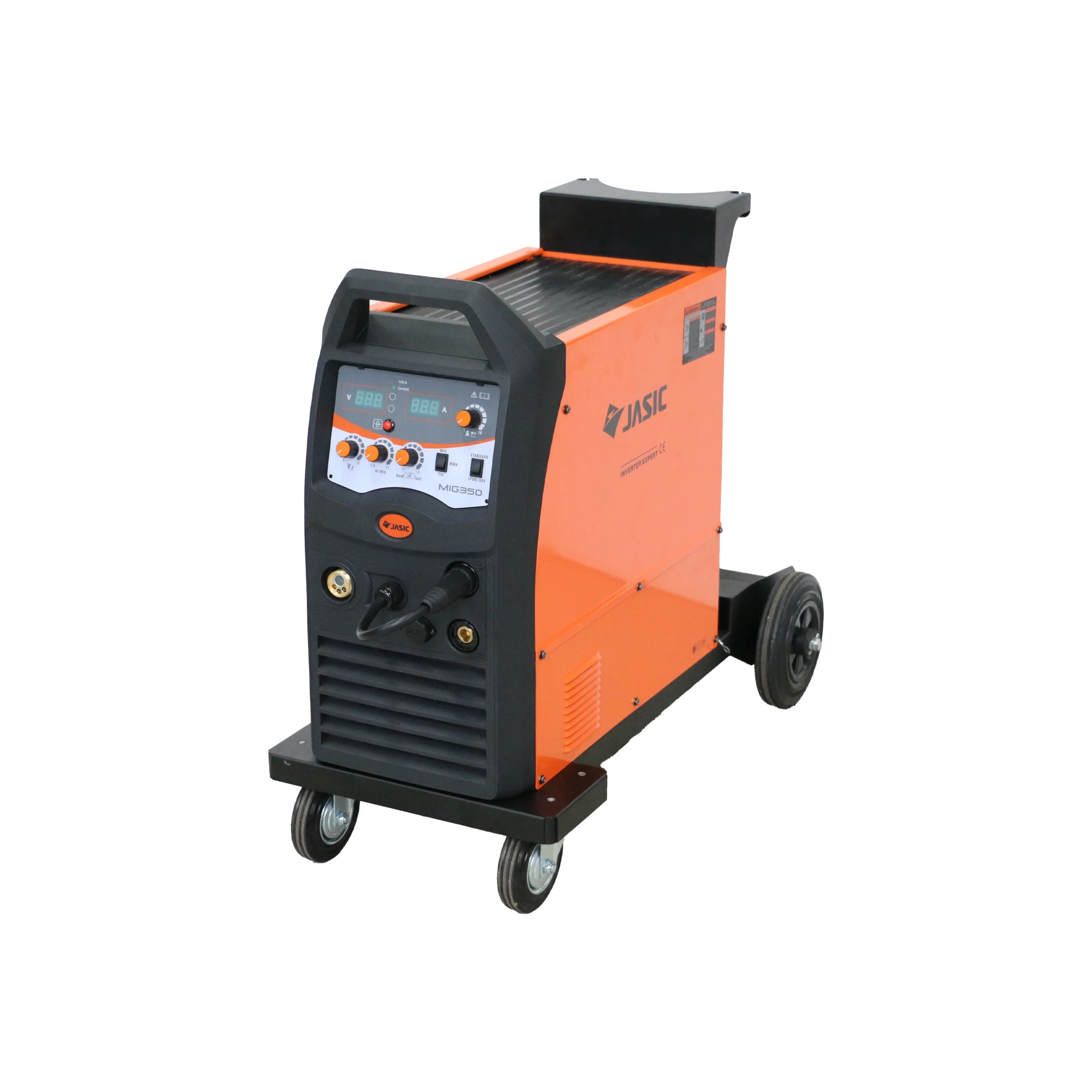

Compact Inverter Multi-Process Welder / MIG 350 Compact

Compact Inverter Multi-Process Welder / MIG 350 Compact

Compact 3-phase MIG welder with advanced arc control and an integrated dual-drive wire feeder for light-industrial use.

Key Features

  • High mobility with integrated trolley
  • Robust housing, 15kg spool compatible
  • Adjustable inductance for optimized arc performance
  • Digital display for current and voltage
  • High welding efficiency

Need a quotation?

Technical Specifications

MIG350 Compact
Input Power Source3PH~AC415V±15% 50/60Hz
Rated Input Current (A)22.8
Rated Input Power Capacity (kVA)15
MMA Output Current Range (A)20~350
MIG Output Current Range (A)50~350
MIG Output Voltage Range (V)15~38
Wire Feed Speed (m/min)1.5~18

Functions

  • MIG/MAG/MMA
  • Gas/gasless FCAW
  • Built-in hot start
  • Built-in arc force
  • Voltage & current digital display meter
  • Burn back
  • O.H. indicator
  • Spool gun interface
  • VRD
  • Lift TIG
  • Inductance
  • 4-roller wire feeder
