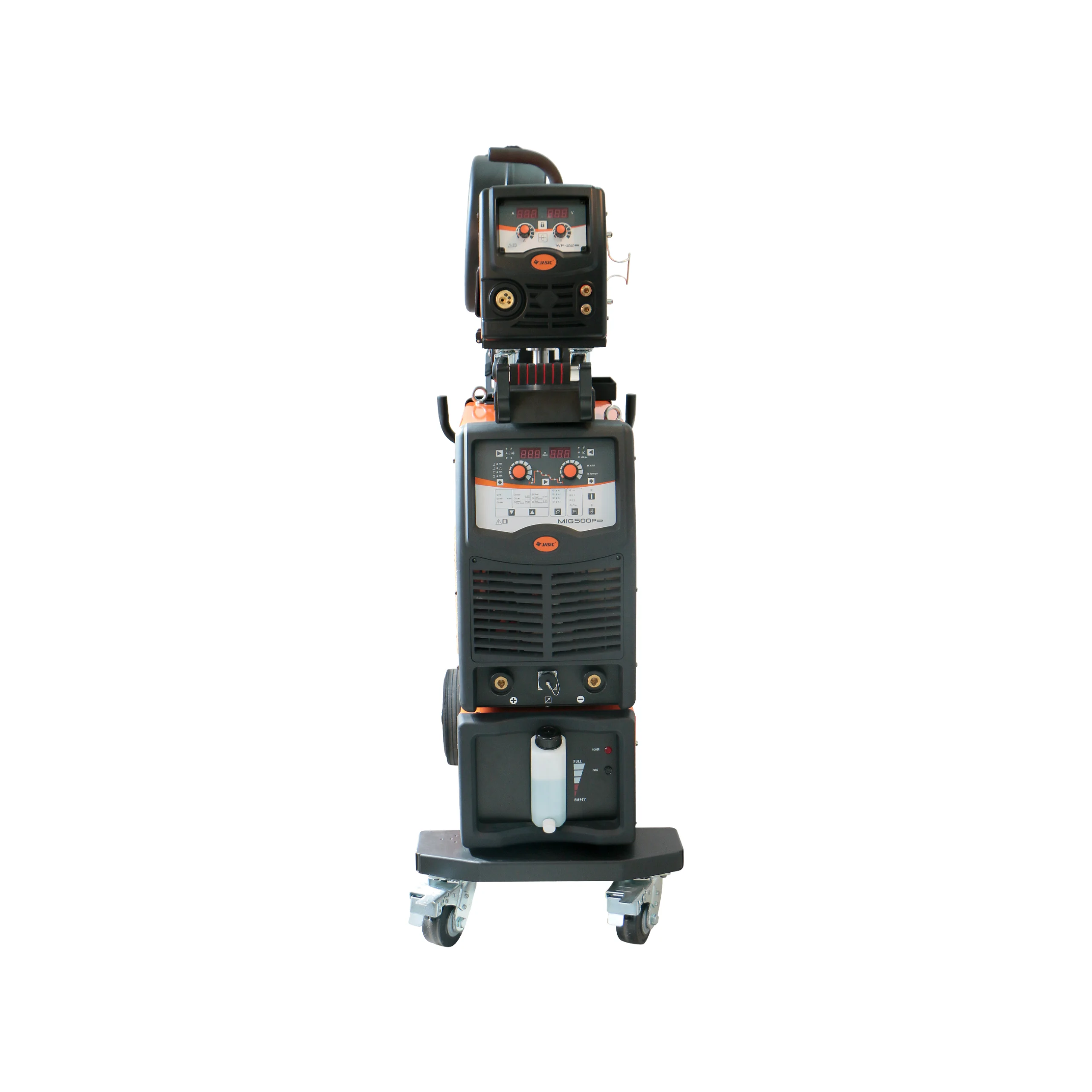

Pulsed Inverter Multi-Process Welder / MIG 500P Multi-Process

High-output 3-phase digital MIG/MAG power source with separate 4-roll feeder and integrated water cooler: multi-process pulsed MIG, synergic MIG, TIG and MMA; 32-bit pulse control, 20 job-memory slots, self-diagnostics.

Key Features

Brand new digital control system with 32-bit efficient processor
High-precision waveform management
Consistent pulse MIG welding results with unified and stable droplet formation
Strong penetration, consistent arcing and crater formation
Synergic regulation with accurate current preset, optional customized database
20 job parameters setting memory slots
Comprehensive digital control panel with interchangeable metric/imperial system display
Operable within +/-20% of work voltage
Equipped with on-demand fan system and separate air passage
Water-proof, dust-proof and corrosion-proof

Need a quotation?

Technical Specifications

MIG500P
Input
Input Power Source	3PH AC380V±20% 50Hz
Rated Power Capacity (kVA)	26.7
Power Factor	0.9
Output
No-load Voltage (V)	86
V.R.D	Yes
MMA, TIG rated VRD (V)	15
MIG rated max output (A/V)	500A / 39V
MMA rated max output (A/V)	500A / 40V
TIG rated max output (A/V)	500A / 30V

Functions

DC MIG / Pulse MIG / MMA welding / Lift-TIG
Arc-force
O.C. & O.H. protection
2T/4T
Wire & gas selection area
Inching
Slow wire feeding
4-roller wire feeder
