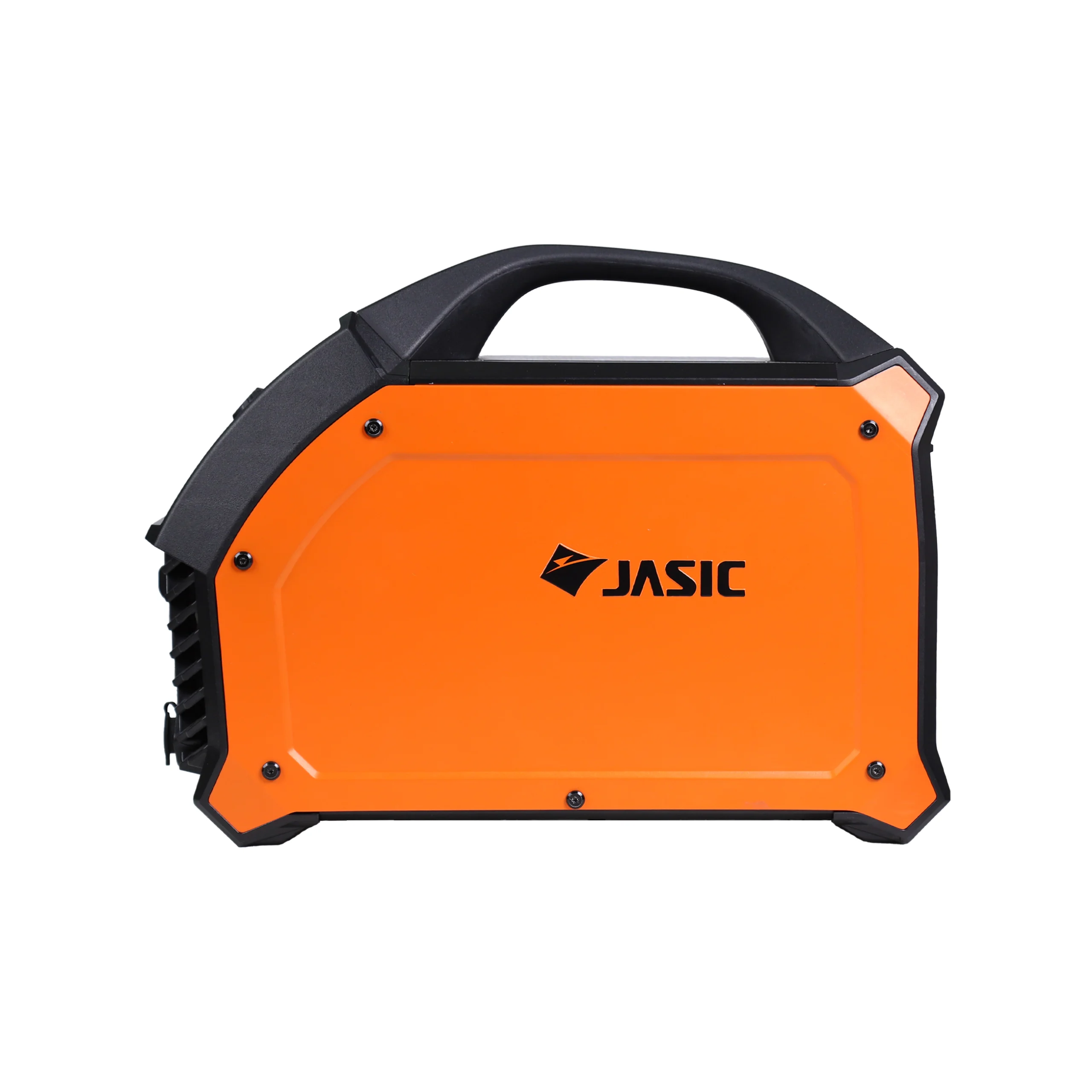

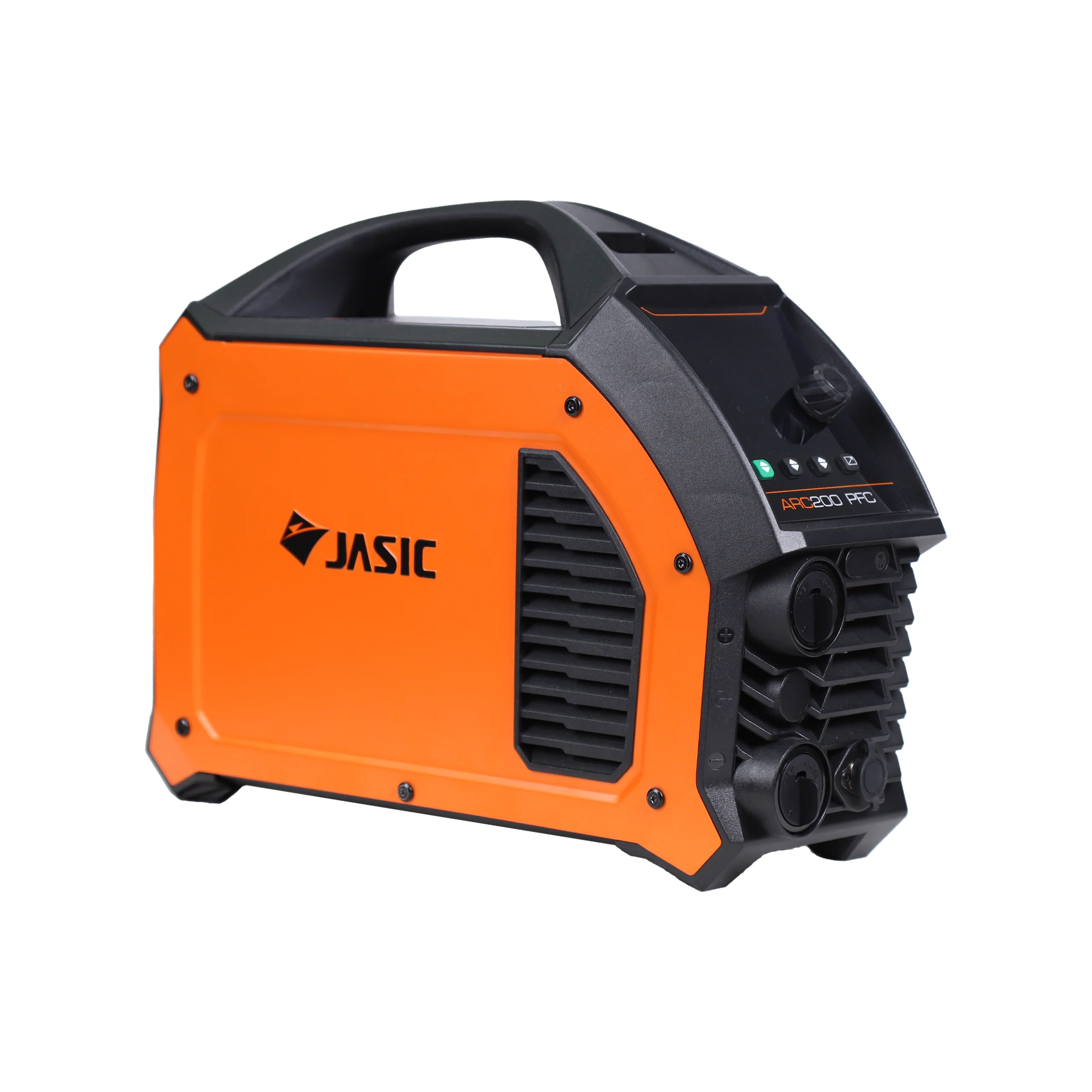

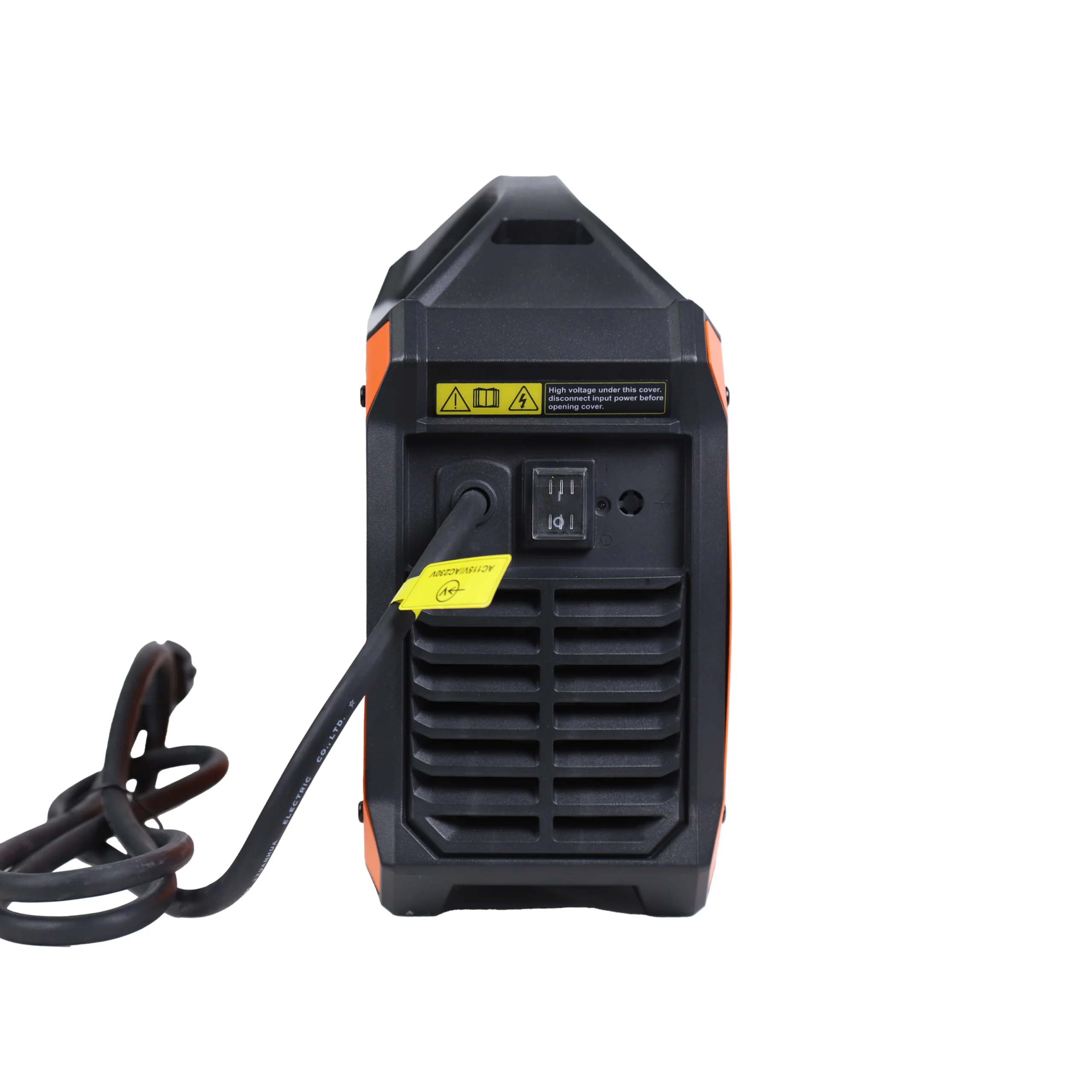

MMA Inverter/ ARC 200 PFC

Reliable, user-friendly MMA/Lift-TIG stick welder; HD ClearVision panel, Synergic MMA, Smart Lift TIG, anti-stick / hot-start / arc-force, flexible remote, and power factor correction.

Key Features

Rugged, robust, and industrial look with ergonomic design

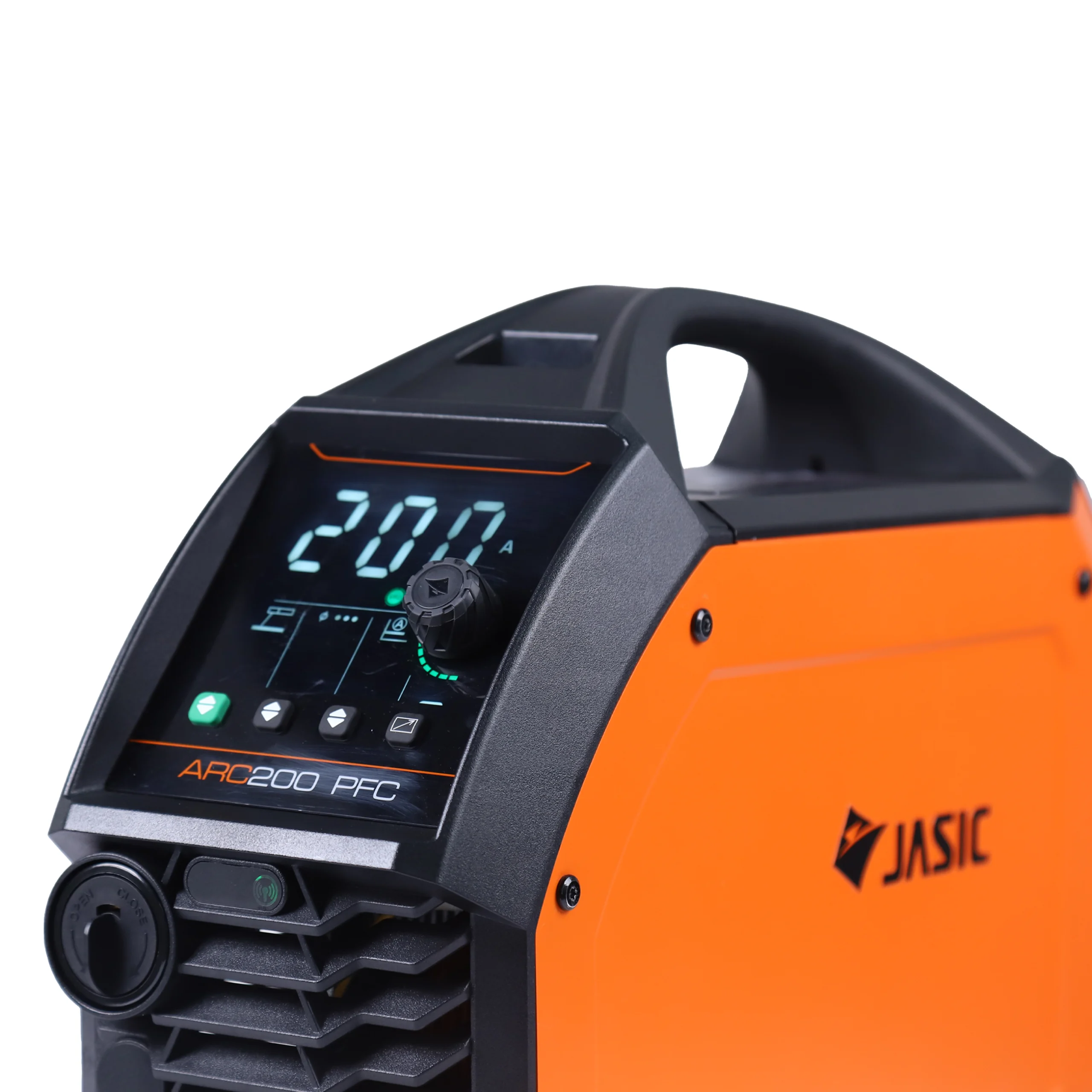

ClearVision Technology
Intelligent synergic control
Smart Lift TIG
Adaptable wide voltage range
Quick factory reset
Anti-stick, adjustable Hot Start and Arc Force
Dedicated wireless remote control (minimalist version)
Remote control receiver module (optional)
Power factor correction (PFC), generator-friendly
ABAP: Active Balancing Air Passage
On demand fan
Voltage Reduction Device (VRD)
Key power electronic component protection
Overcurrent and overheat protection

Need a quotation?

Technical Specifications

ARC200 PFC
Input Power Source — AC95~265 V, 50/60 Hz	AC115V	AC230V
No-load Voltage (V)	78
MMA
Rated Input Current (A)	31.2	29.7
Rated Input Power Capacity (kVA)	3.6	6.8
Output Current Range (A)	20~120	20~200
Rated Duty Cycle	AC115V: 78A at 23.1V, 60% duty cycle; 60A at 22.4V, 100% duty cycle. AC230V: 129A at 25.2V, 60% duty cycle; 100A at 24V, 100% duty cycle.
TIG
Rated Input Current (A)	27.2	19.6
Rated Input Power Capacity (kVA)	3.1	4.5
Output Current Range (A)	10~160	10~200
