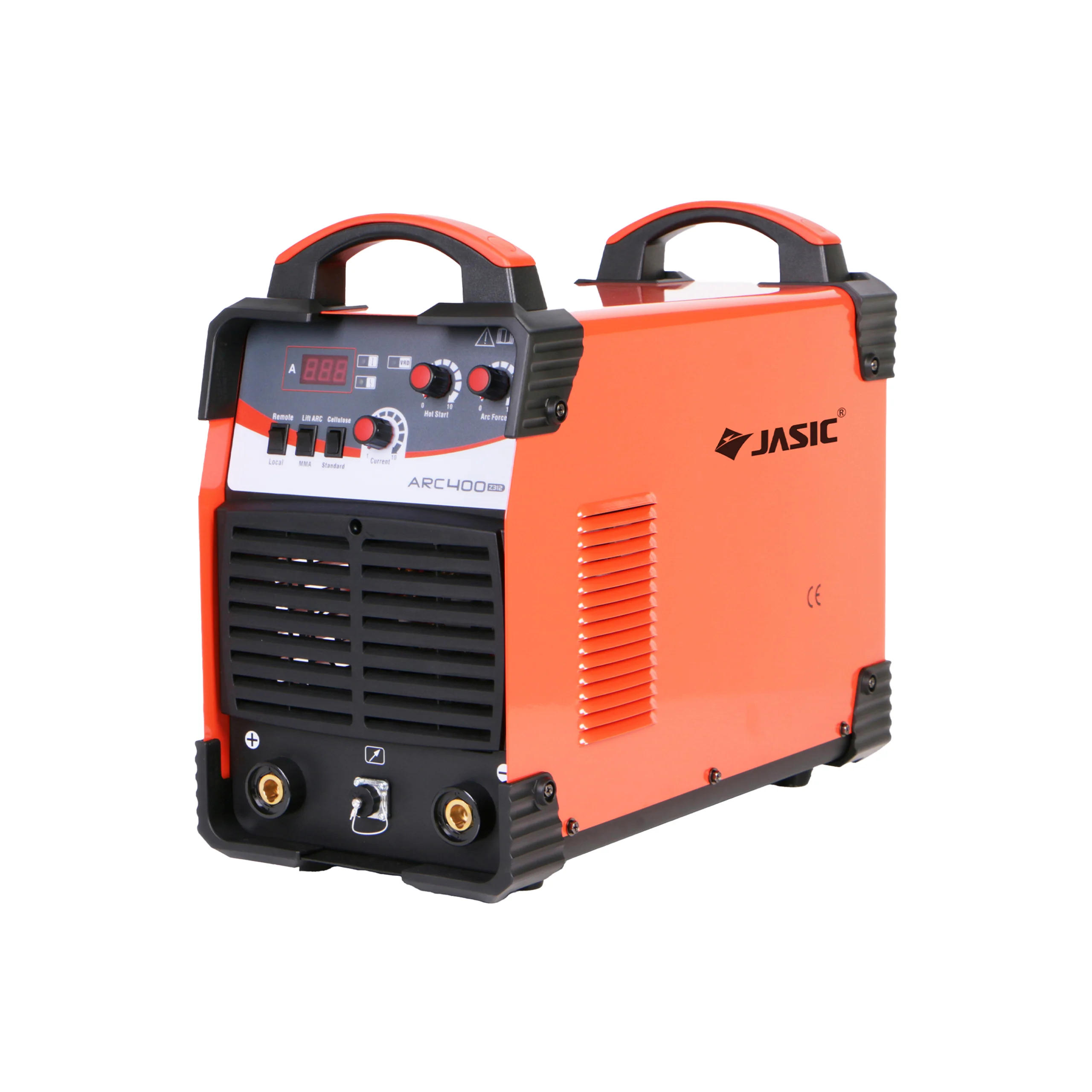

Cellulosic 3-Phase Stick Welder / ARC 400C

Cellulosic 3-Phase Stick Welder / ARC 400C

Three-phase heavy-duty MMA inverter for electrodes up to 5mm with a dedicated cellulosic switch; built-in Lift-TIG; ideal for pipeline and structural stick welding.

Key Features

  • IGBT inverter technology
  • Easy-to-use operation panel
  • Optional cable remote control guarantees convenient remote operation
  • Excellent welding quality, optimum arc dynamic characteristics
  • Suitable for all acid, basic, stainless, low-hydrogen electrodes

Need a quotation?

Technical Specifications

ARC400C
Input Power Source3PH~AC380V±15% 50/60Hz
Rated Input Current (A)28
Rated Input Power Capacity (kVA)18.2
Power Factor (cosφ)0.93
Output Current Range (A)20~400
Arc-force Range (A)0~100
Hot Start Range (A)0~200

Functions

  • Hot start
  • Lift TIG
  • O.C. & O.H. protection
  • VRD
  • Cellulosic electrode capability
  • Generator compatibility
