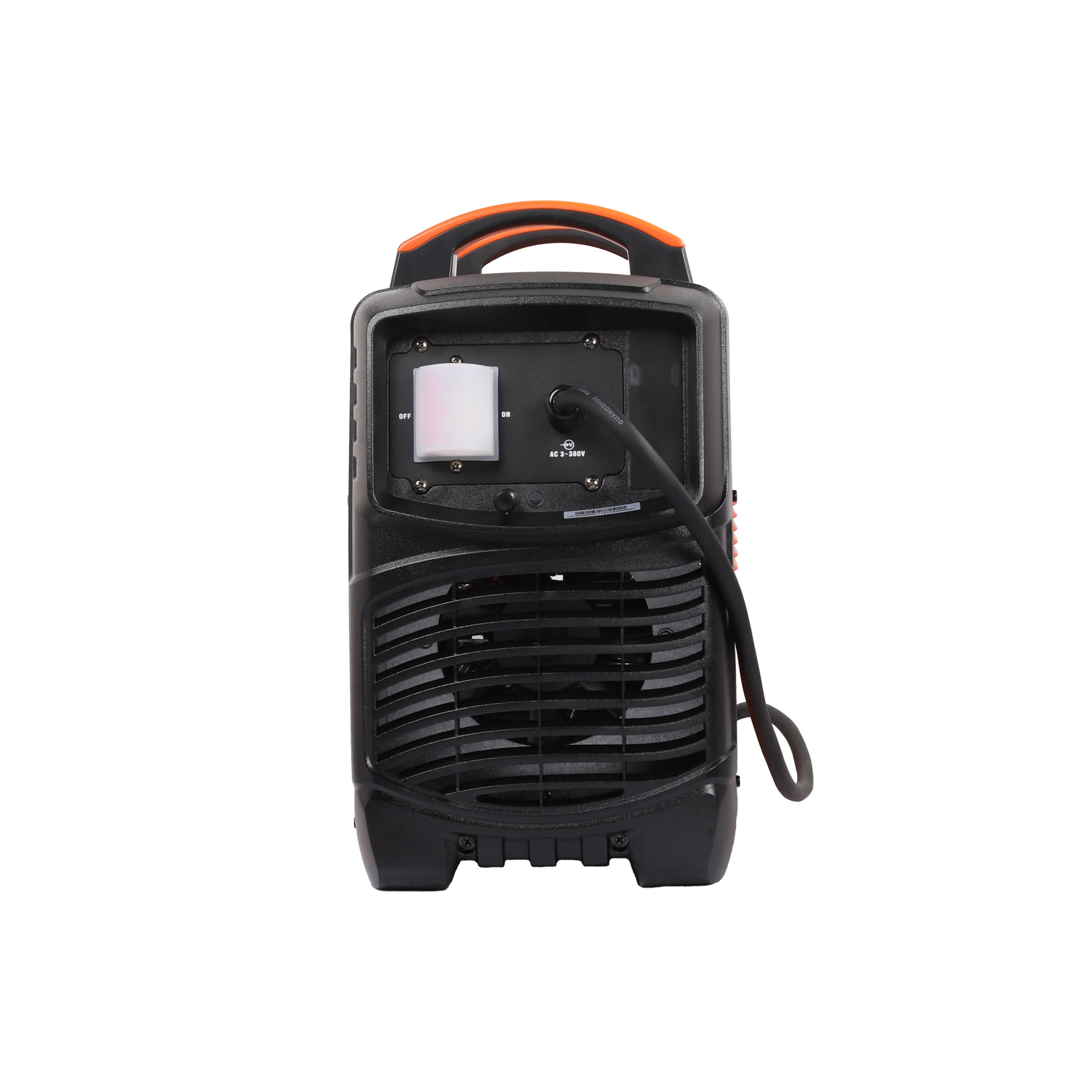

Stick (MMA) Inverter Welder / ARC400

Industrial IGBT stick (MMA) inverter with digital meters; anti-stick, arc-force and hot-start, Lift-TIG, mains/thermal overload LEDs, voltage-fluctuation compensation; handles a wide electrode range. Remote-control and VRD options.

Key Features

Synergic MMA function, auto-matching welding parameters according to the selected welding electrode diameters
Lift TIG, easy arc starting and anti-stick
High OCV, strong output: capable of welding with 4.0mm electrodes and work on 200m extension cord
Capable of all-day welding with 5.0mm electrodes
Consistent arc force performance
Compatible with most generators in the market
On-demand fan: energy-saving, noise-reducing, limited dust absorption and extended lifespan

Need a quotation?

Technical Specifications

ARC400
Input
Input Power Source	3PH AC380 ±15%
Rated Input Power Capacity (kVA)	18.8
Power Factor	0.87
Rated Input Current (A)	25
Rated No-load Voltage (V)	71
Output — MMA
Welding Current (A)	30~400
Arc Force Current (A)	0~150
Hot Start Current (A)	0~60
Lift TIG
Welding Current (A)	20~400
Arc Starting	Contact arc ignition
