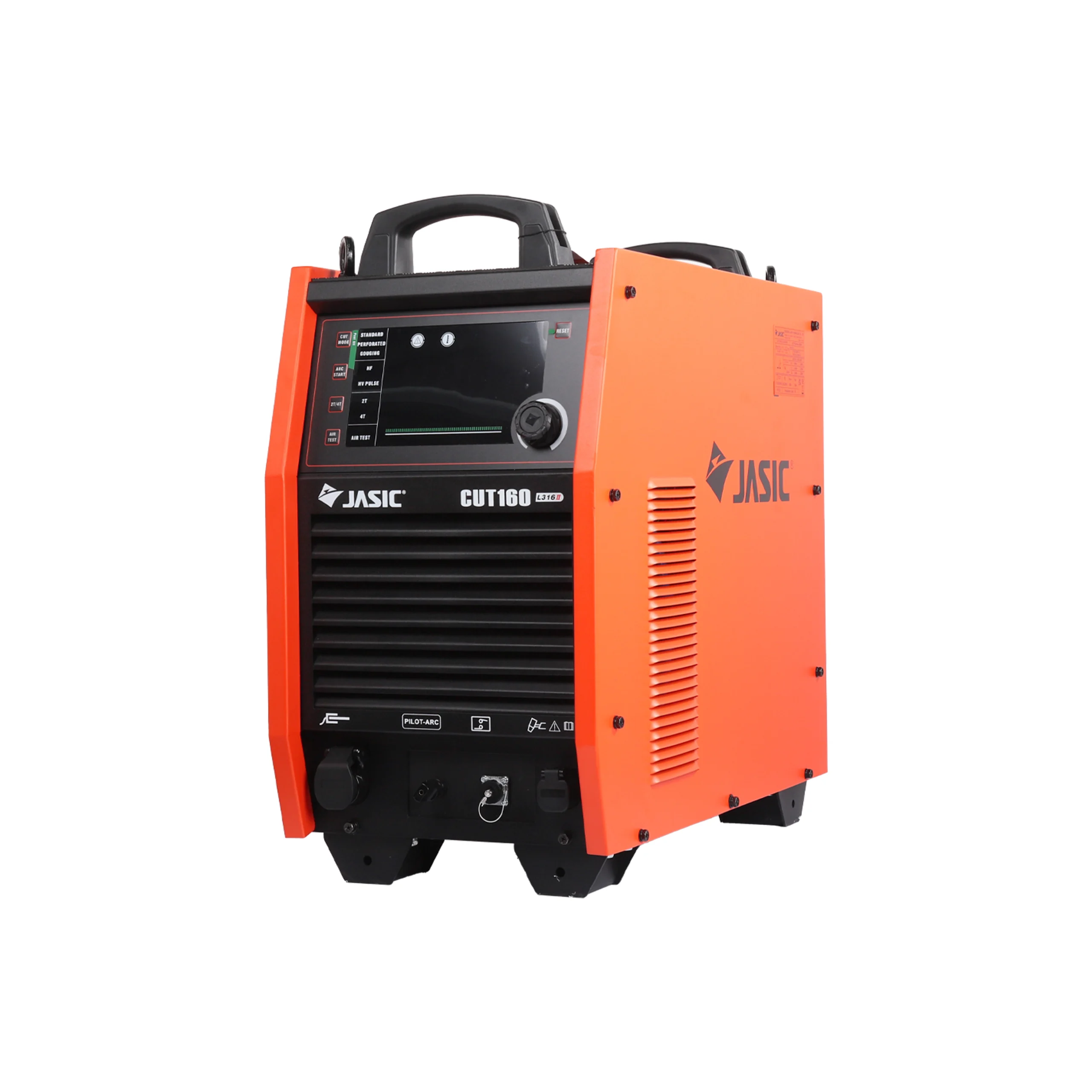

Plasma Cutter / CUT160

160A three-phase plasma cutter: clean cuts to ~45mm, severance to ~50mm; non-HF arc ignition ideal for CNC, dust-free sealed air passage and on-demand cooling for harsh environments.

Key Features

Excellent cutting results with limited dross and smooth cutting surface
Continuous cutting, mesh cutting, and plasma arc gouging functions
Auto-detection for edge starts and pierce starts
Stable output, remains functional even with input voltage as low as AC300V
Can be used with CNC machines
Two types of arc ignition methods: high frequency (HF) and high voltage pulse (HV)
Arc ignition by high voltage pulse can significantly reduce the interference of arc ignition on CNC equipment

Need a quotation?

Technical Specifications

CUT 160
Recommended Cutting Specification
Quality Cut Capacity (mechanized)	40 mm
Quality Cut Capacity (hand cutting)	45 mm
Severance Capacity (hand cutting)	60 mm
Input
Input Power Source	3PH AC380V±15% 50Hz
Rated Input Power Capacity (kVA)	29.2
Power Factor	0.9
Output
Rated No-load Voltage (V)	320
Cutting Current (A)	30–160
Rated Output Voltage (V)	144
Quality Cut Thickness @350mm/min (mm)	40 (Carbon steel)
Severe Cut Thickness (mm)	60 (Carbon steel)
