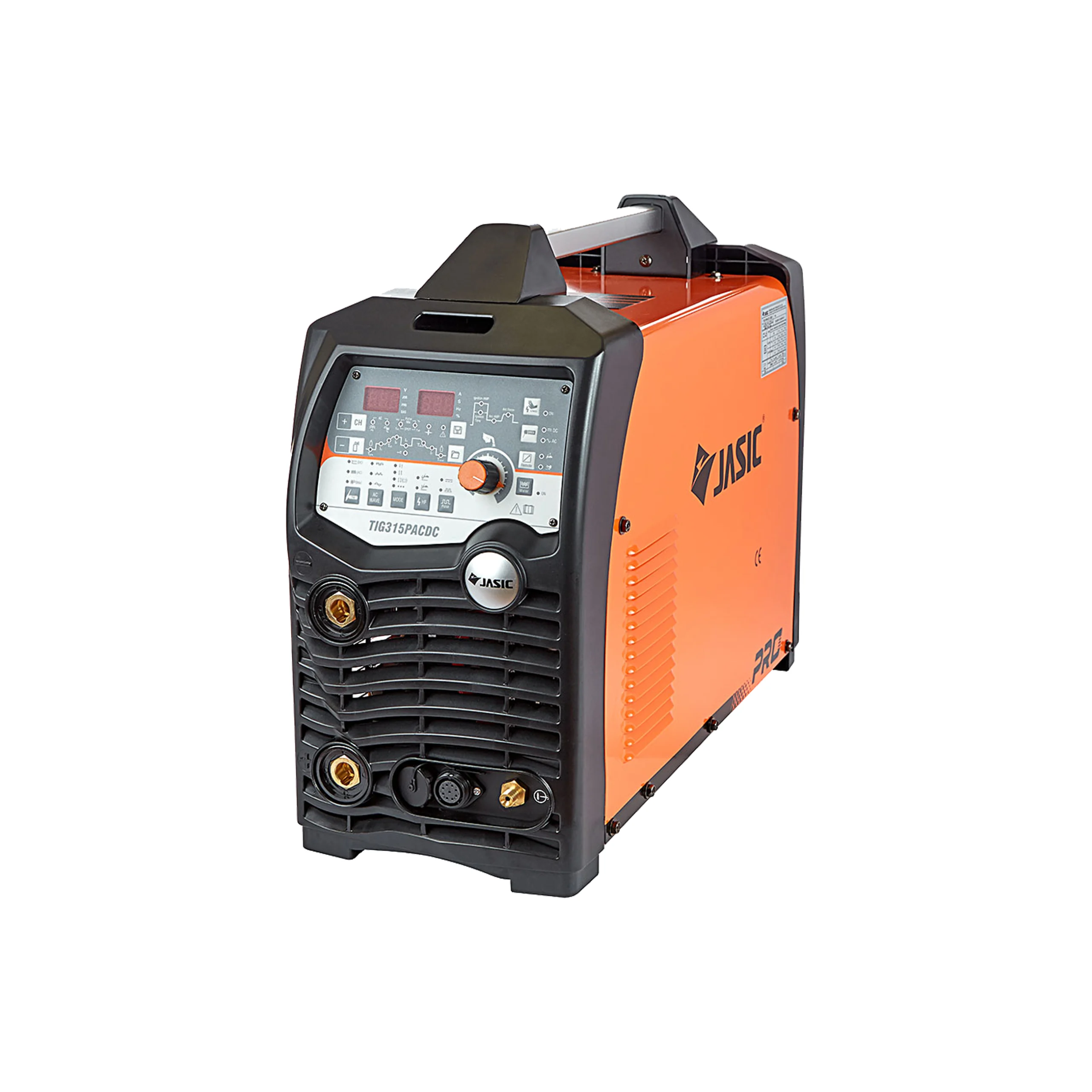

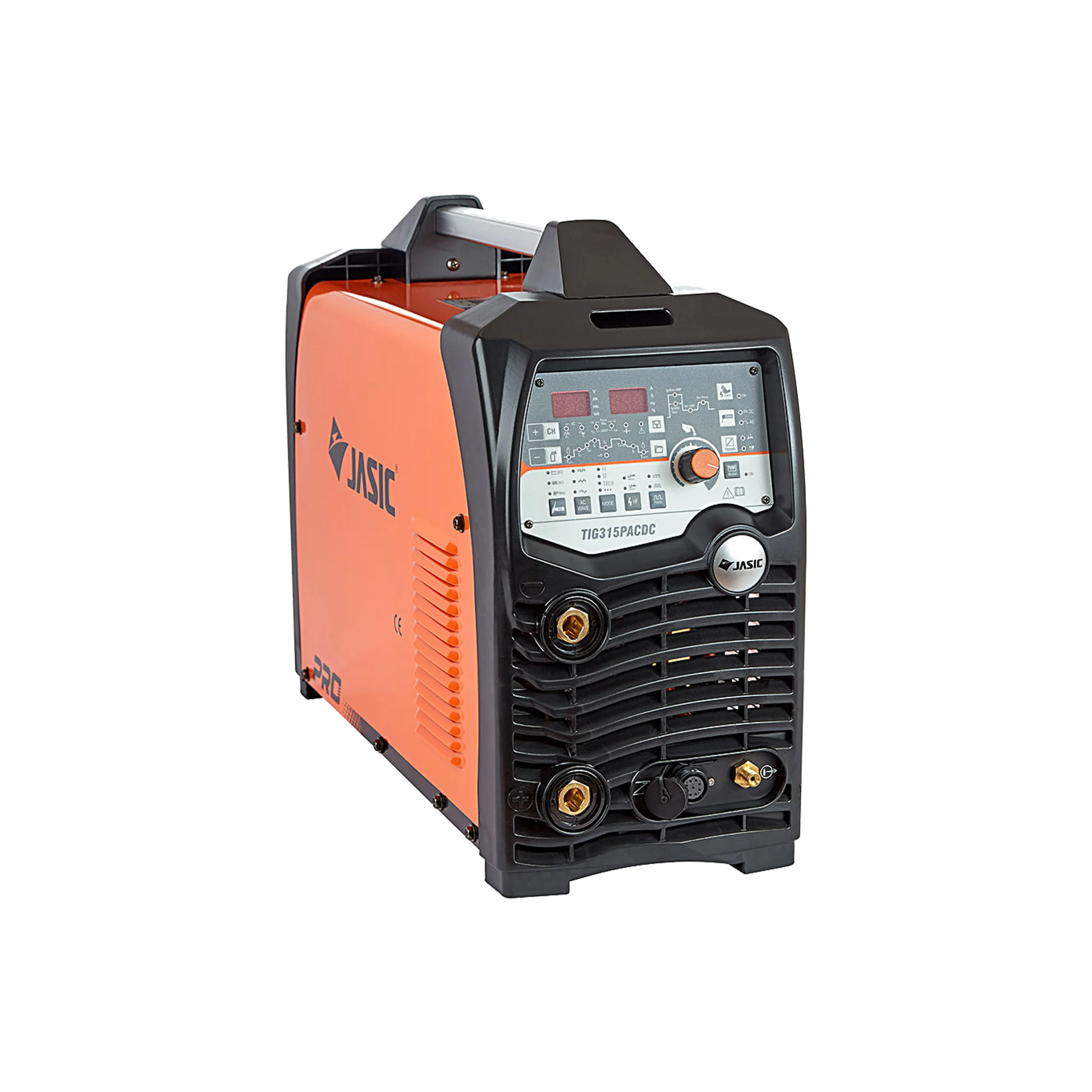

AC/DC Pulsed TIG Welder / TIG315P AC/DC

AC/DC Pulsed TIG Welder / TIG315P AC/DC

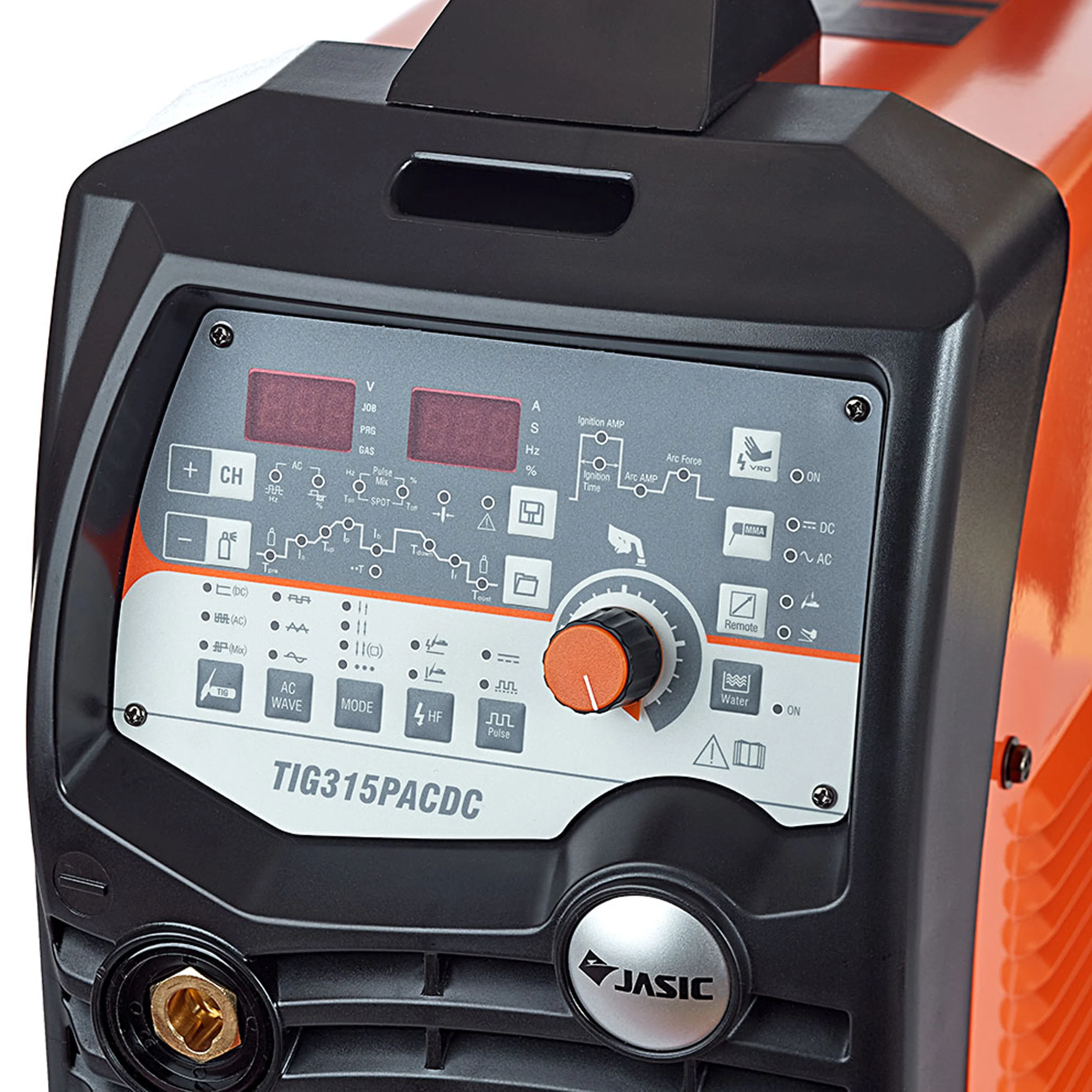

Three-phase digital AC/DC pulse TIG (welds aluminium) doubling as an MMA source: innovative panel with digital weld cycle, 6 welding modes, program memory, 2T/4T; modular system with trolley and water cooler as standard.

Key Features

IGBT inverter
Precise digital control and multi-functionality empowered by MCU technology
Easy arc striking and stable current for smooth welding
Good weld seams with minimal spatter
Protection code hint displays when protection function is activated
Great automatic recording function

Need a quotation?

Technical Specifications

TIG315P AC/DC
Input Power Source	1PH~AC380V±15% 50/60Hz
Rated Input Current (A)	19.5 @TIG · 21.0 @MMA
Power Capacity (kVA)	9.0 @TIG · 10.0 @MMA
Rated Input Power Capacity (kVA)	21
TIG Output Current Range (A)	6~315
MMA Output Current Range (A)	10~270
Pre-flow Time (S)	0.5~10
Post-flow Time (S)	0.5~15
Up/Down Slope (S)	0~15
AC Balance (%)	20~60
Arc Starting	HF / non HF
AC Frequency (Hz)	0~80
Pulse Frequency DC (Hz)	0.5~200
Pulse Frequency AC (Hz)	0.5~20

Functions

HF
2T/4T
Pre/post flow
Built-in hot start
Built-in arc force
O.H. & O.V. & O.C. & U.V.
Digital display meter
