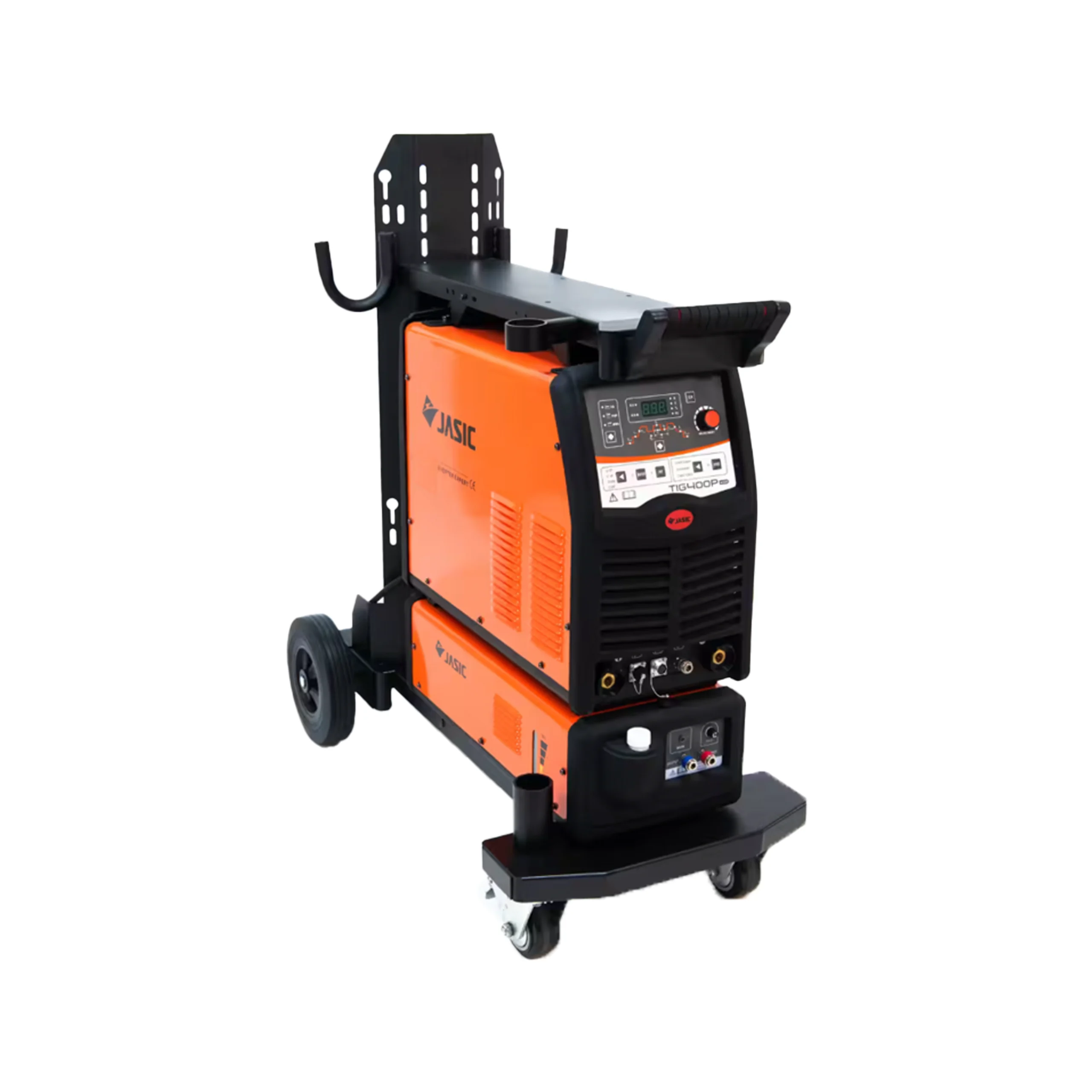

DC Pulsed TIG Welder / TIG400P

Industrial DC pulse TIG/MMA inverter: IGBT power with MCU chip for accuracy and consistency; digital panel with software-upgrade interface and parameter storage; modular design with trolley and water cooler.

Key Features

Digital welding circuit for refined welding performance
Equipped with pulse mode, suitable for welding 0.5mm thin plate at a min. current of 5A
High IP rating for improved reliability in harsh working environment
Reserved digital interface for auto equipment connection

Need a quotation?

Technical Specifications

TIG400P
Input
Rated Input Power Supply	3PH AC380V±15% 50/60Hz
Rated Input Capacity (kVA)	17.9
Power Factor	0.96
Rated No-load Voltage (V)	68 (15V when under VRD)
MMA Output
Rated Maximum Output (A/V)	400/36
Welding Current Range (A)	30~400
Arc Force Current Range (A)	0~200
Arc Ignition Current Range (A)	0~200
Output Characteristic	CC
TIG Output
Rated Maximum Output (A/V)	400/26
Welding Current Range (A)	5~400
Pre-flow Time Range (s)	0~15
Initial Current Range (A)	5~400
Pilot Arc Current Range (A)	5~400
Up Slope Time Range (s)	0~10
Base Current Range (A)	5~400
Peak Current Range (A)	5~400
Downslope Time Range (s)	0~10
Post-flow Time Range (s)	0~15
Pulse Frequency Range (Hz)	0.5~200
Pulse Duration Ratio Range (%)	10~90
Spot Welding Time (s)	0.1~10
Arc Ignition Mode	HF / Lift arc ignition
Output Characteristic	CC
